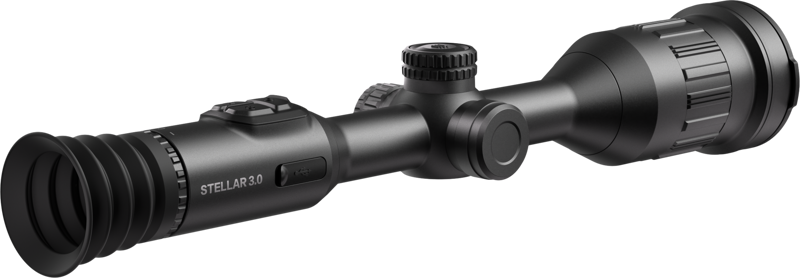

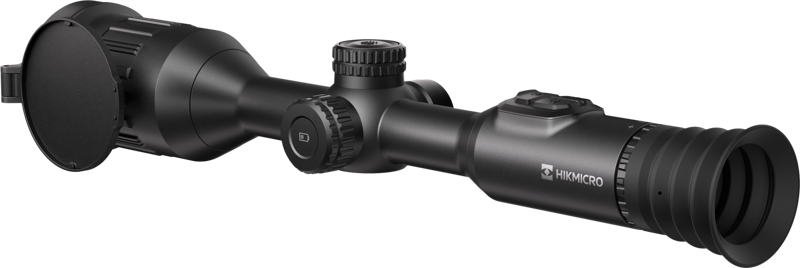

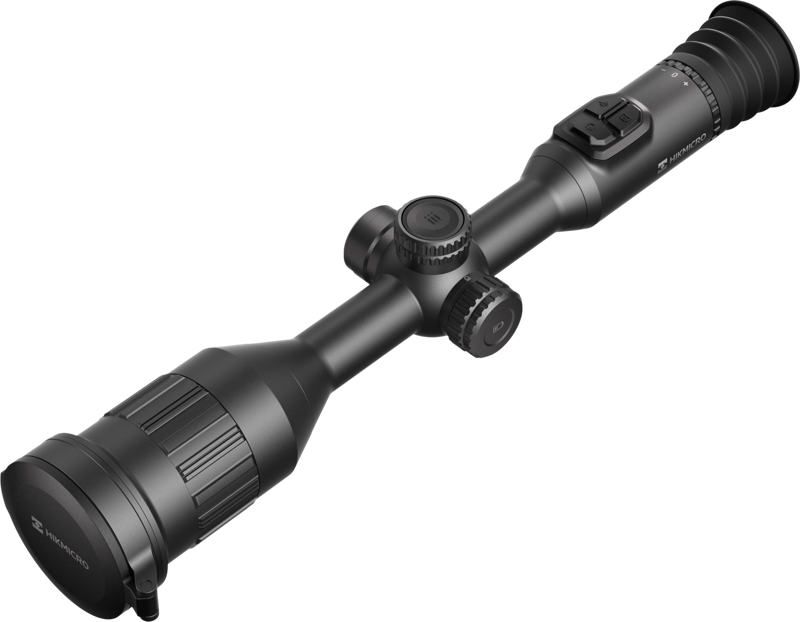

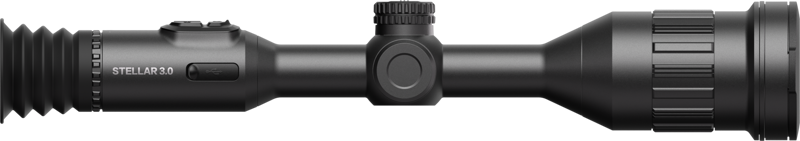

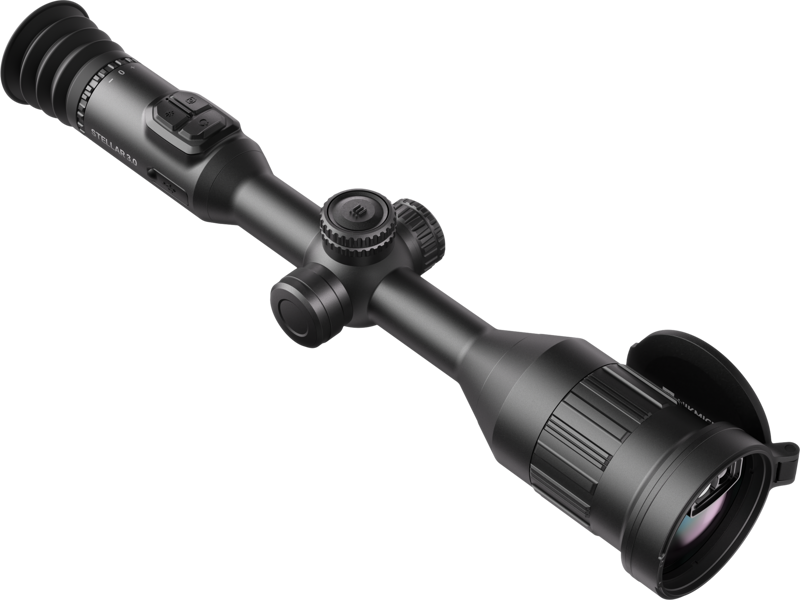

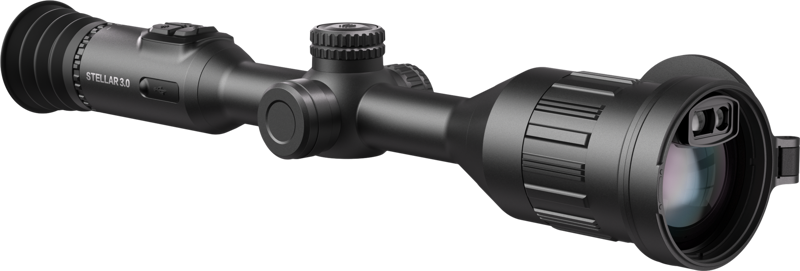

Stellar SX60LS 3.0 Thermal TubeScope

Tekniska specifikationer

Tillverkare

Hangzhou Microimage Intelligent Technology Co., Ltd., Floor 2,Building A1, No.299,Qiushi Road, Tonglu Economic Development Zone,Tonglu County, Hangzhou, China https://www.hikmicrotech.com/

EC Rep

Microimage Europe B.V., Dirk Storklaan 3, 2132 PX Hoofddorp, Netherlands, [email protected]

Batteriklass

Rechargeble 18650

Batterityp

Lithium

Dimensioner (B x H x D) (mm)

452.6mm x 94.3mm x83.9mm

Dipotrijustering

-5D to 3D

Skärmstorlek (tum)

1,03

Utgångspupill Ø

6

Toppunktsavstånd

45

Ögonmussla

Rubber Cup

Synfält (°)

14.6°×11.7°

Glastyp

Germanium

Förstoring (x)

2.5 - 28.5

Ljusstyrka

1.0

Max drifttid (h)

10

Minnestyp

Built-in (64GB)

Sensorstorlek

1280x1024, 12µm

Lagringskapacitet

64GB

Vattentät (m)

IP67

Vikt (g)

1000

Garantitid (år)

3

Operating temperature °C (minimum)

-30

Operating temperature °C (maximum)

55

Thermal sensitivity NETD

18mk

Detection range

3100

Field of view 100m

25.6m×20.5m

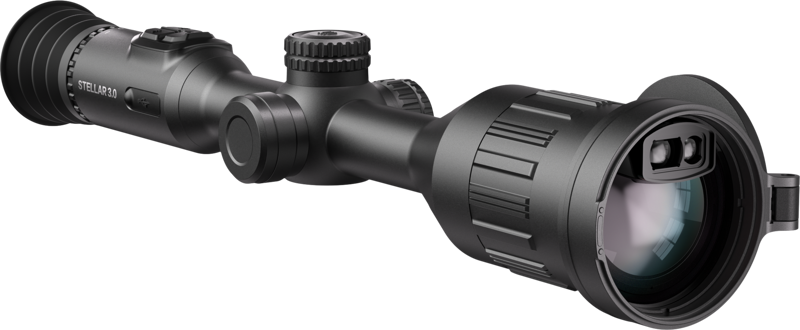

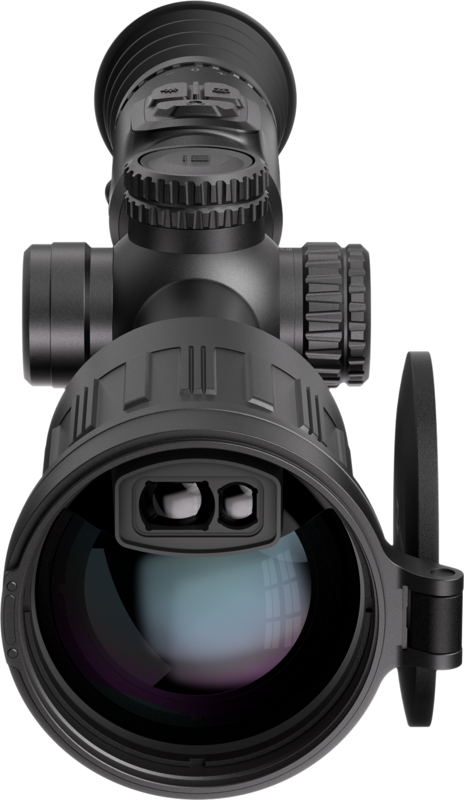

Laser range finder

Yes

Närfokus (m)

5

Objektivdiameter (mm)

60
